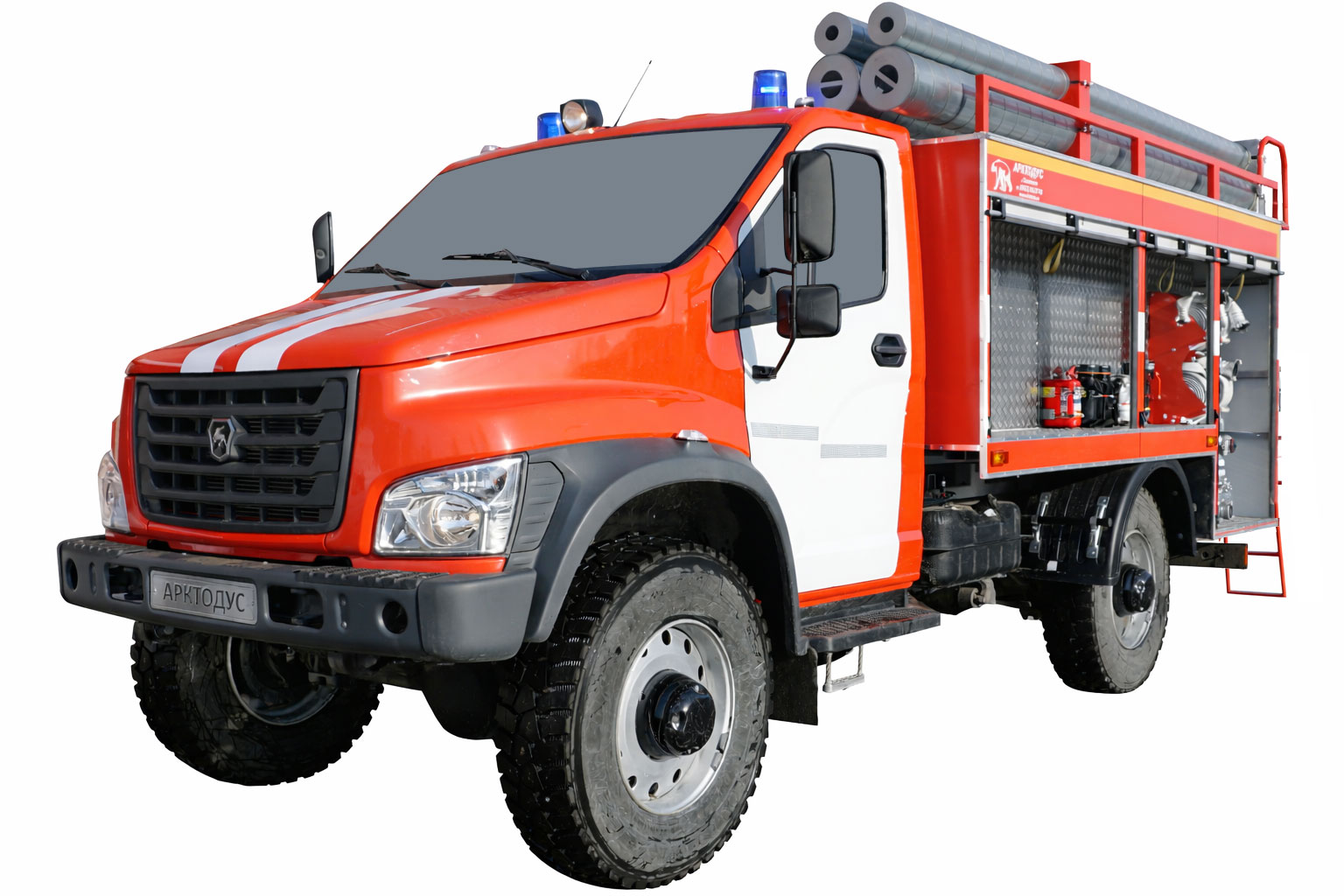

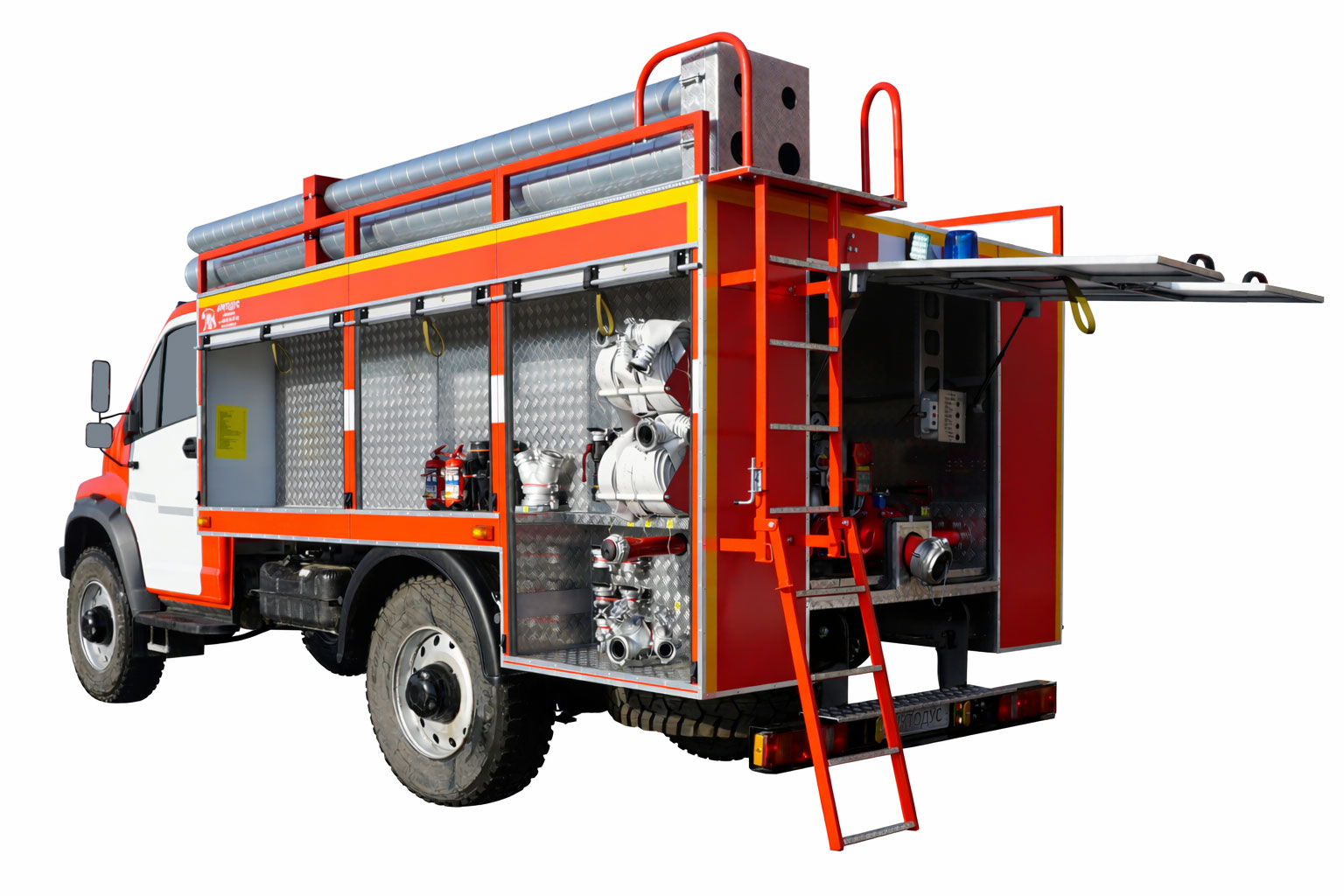

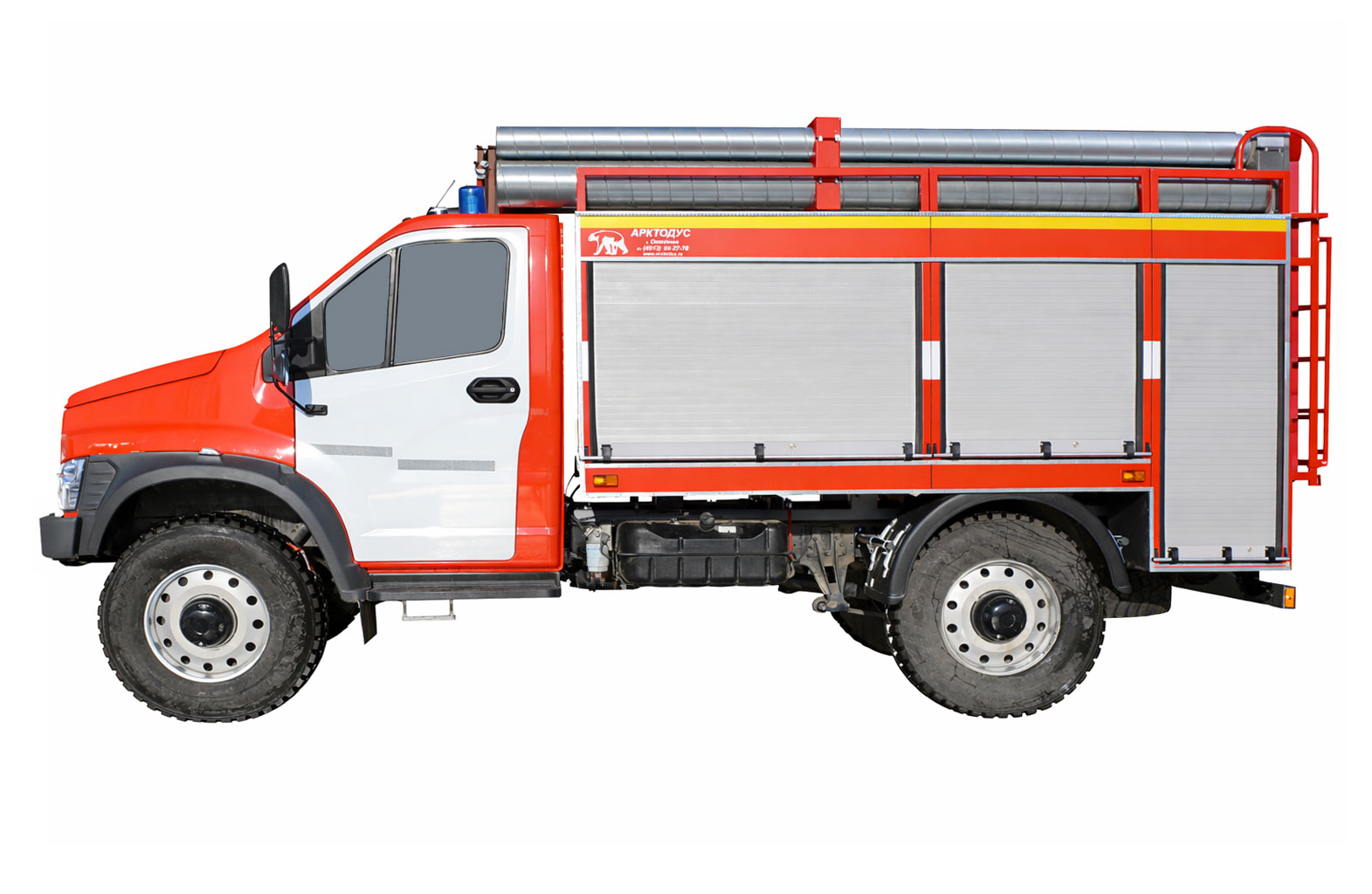

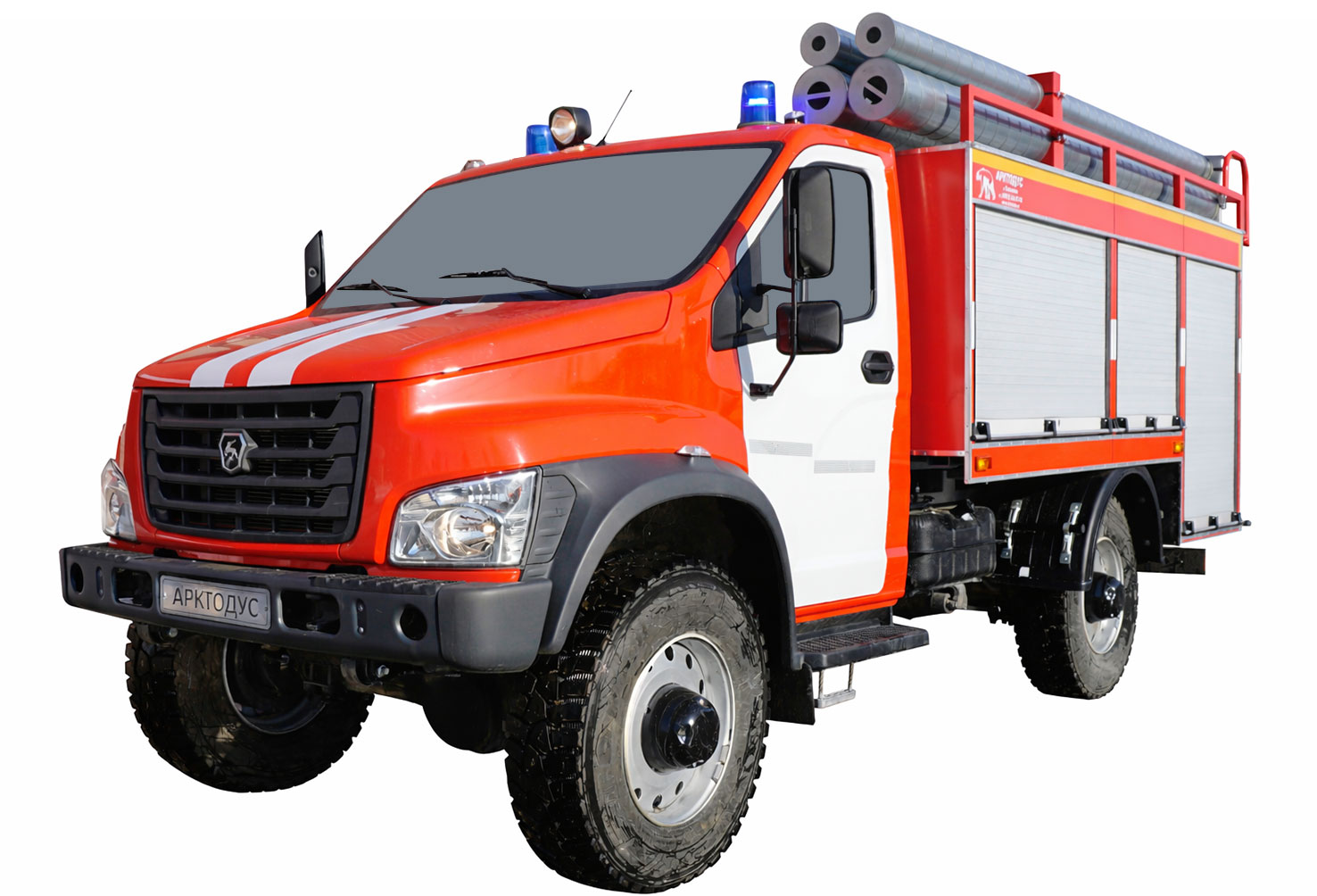

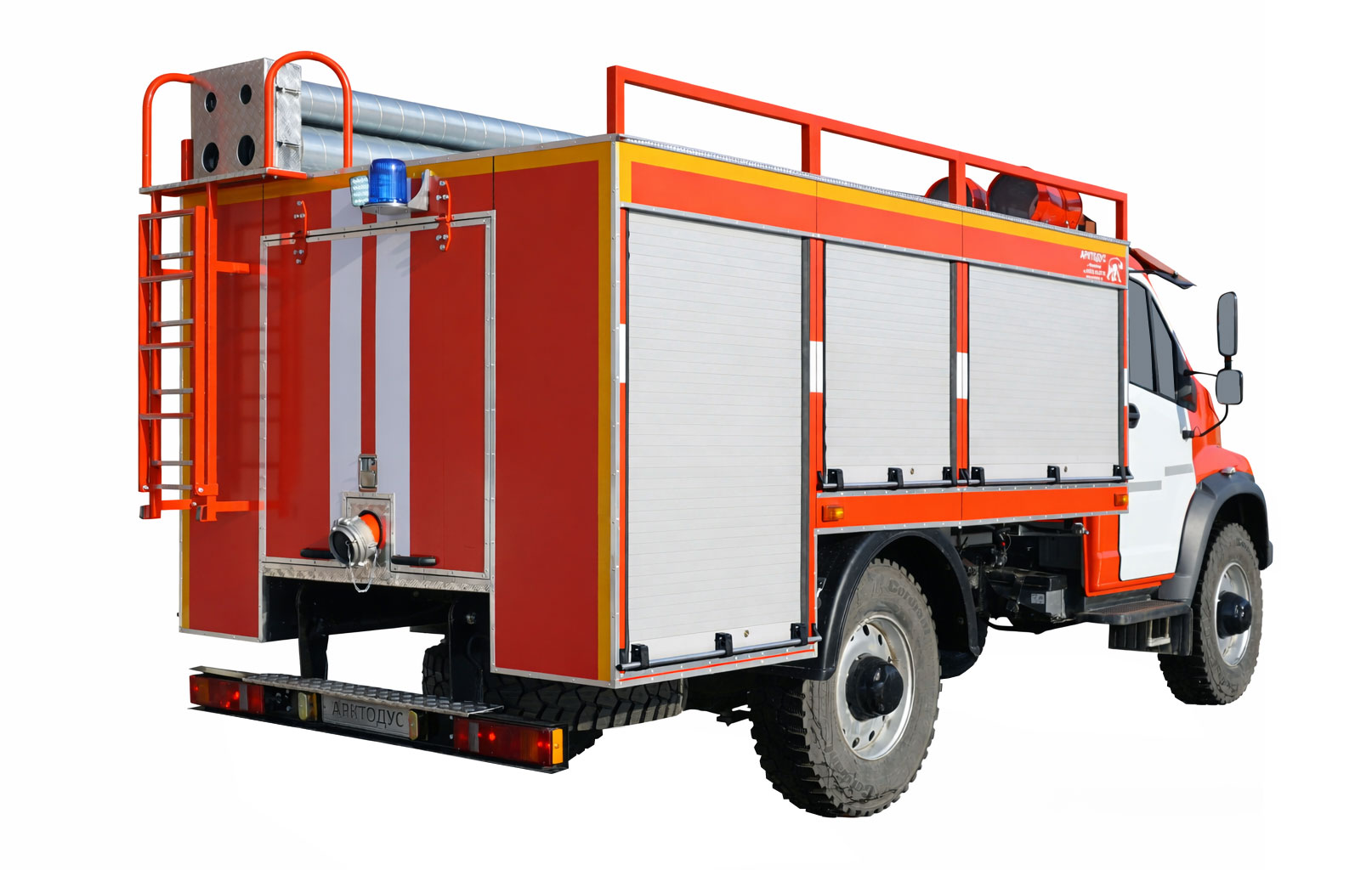

Fire truck AZ 3,5-40 (GAZ C41A13 SADKO 9)
Additional Info
- Capacity: 3500 liters
- Chassis type: GAZ
- Chassis Drive Type: Drive Type 4х4
- Pump location: from the back
View the embedded image gallery online at:
https://www.arctodus.ru/en/fire-truck-az-3-5-40-gaz-c41a13-sadko-9.html#sigProIdc2422b29cb
https://www.arctodus.ru/en/fire-truck-az-3-5-40-gaz-c41a13-sadko-9.html#sigProIdc2422b29cb
View the embedded image gallery online at:
https://www.arctodus.ru/en/fire-truck-az-3-5-40-gaz-c41a13-sadko-9.html#sigProId2e1eded491
https://www.arctodus.ru/en/fire-truck-az-3-5-40-gaz-c41a13-sadko-9.html#sigProId2e1eded491
Fire truck AZ 3,5-40 (GAZ C41A13 SADKO 9)
Fire truck AZ 3,5-40 (GAZ C41A13 SADKO 9) intended for:
- delivery to the fire site of fire personnel, fire extinguishing substances, fire-technical equipment (FTE) and rescue equipment (RE), - extinguishing fires and emergency rescue operations, using a fire truck, fire personnel, fire extinguishing, substances, FTE and RE.
| Capacity volume for water, l | from 0 to 3500 | ||
| Capacity volume for frother, l | 210 (other as per customer request) | ||

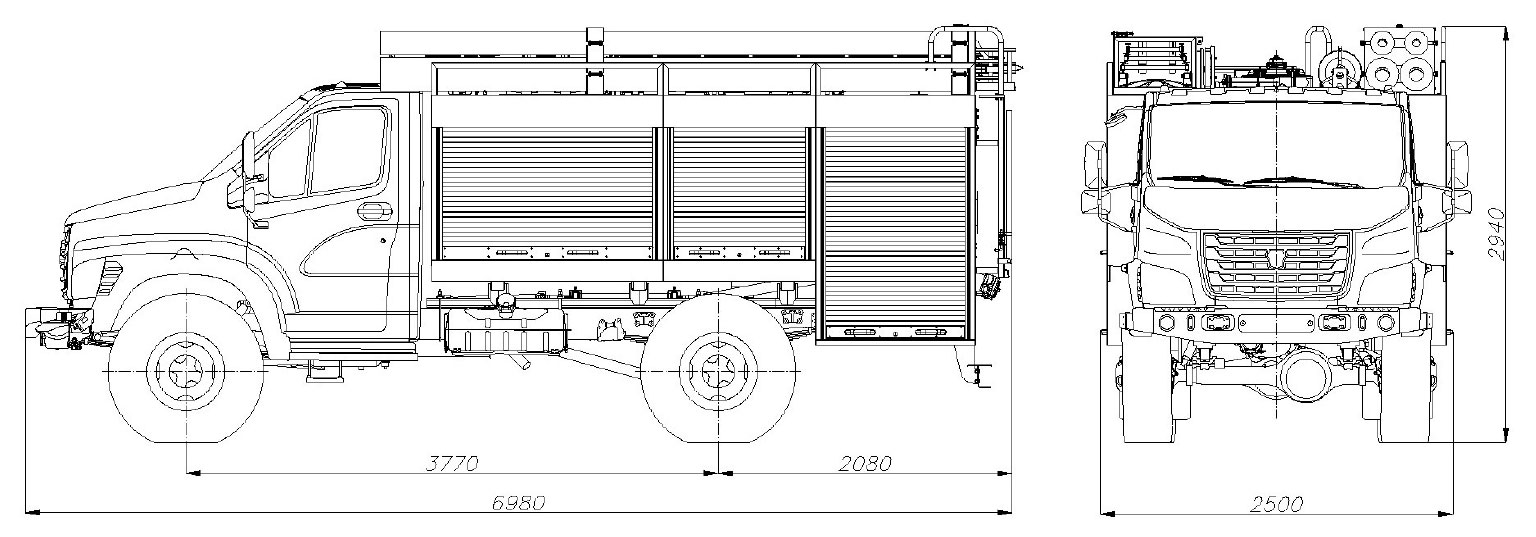

| Overall dimensions (length / height / width), mm | 6980х2940х2500 | ||
| Full mass, kg | 9000 | ||
| Colorography schemes | GOST R 50574-2002 (other as per customer request) | ||
| Cab fire truck, the number of places for firefighting crew (including the driver's seat) | all-metal standard chassis cabin, two-door, single-row, two places | ||

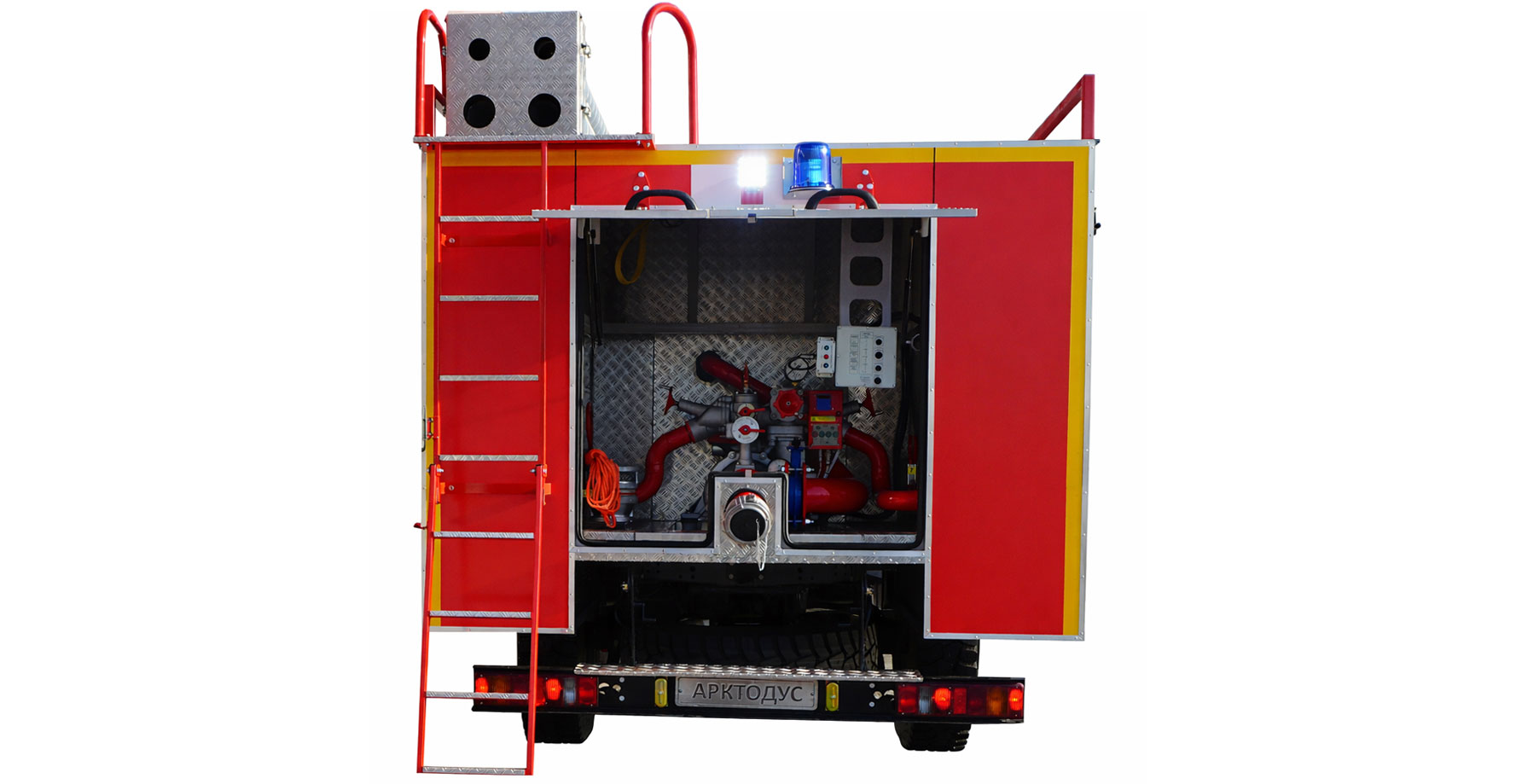

| Execution option of loading space of the fire truck | water tank, foam tank, fire pump, water and foam communications, body superstructure with compartments for fire-technical equipment and rescue equipment | ||
| Fire pump | normal pressure centrifugal fire pump NZPN-40/100, (according to GOST R 52283-2004 "Centrifugal fire pumps. General technical requirements. Test methods"), rear location (other as per customer request). (other as per customer request) | ||
| Fire pump performance | from 0 to 40 liters per second (or another with another fire pump) | ||
| Completeness FTE | according to the standards of the Order of the Ministry of Emergency Situations of Russia №425 of July 25, 2006 (other as per customer request). (other as per customer request) | ||
| Placement FTE | in the compartments, taking into account the tactics of its operational use, to ensure the reliability of equipment fixation, accessibility, convenience and safety during removal and installation | ||
| Wheel formula / driving wheels | 4 х 4 / all | ||
| The layout of the base chassis of a fire truck | engine layout front, longitudinal, cabin behind engine, loading workspace behind cabin | ||
| Wheelbase, mm | 3770 | ||
| Wheel track (front / rear), mm | 1820 / 1770 | ||
| Engine (type, ecological class) | YaMZ-53443, four-stroke, diesel, Euro-5 | ||
| Engine power, hp | 148,9 | ||
| Maximum speed, km/h | 90 | ||
| Gearbox (type) | mechanical | ||
| Tires (type, size) | 315/80R18 22.5 | ||
