Fire truck AZ 1,6-40 (GAZ C41A23)

Additional Info

  • Capacity: 1600 liters
  • Chassis type: GAZ
  • Chassis Drive Type: Drive Type 4х4
  • Pump location: from the back

View the embedded image gallery online at:
https://www.arctodus.ru/en/item/549-fire-truck-az-1-6-40-gaz-c41a23.html#sigProIdf01a4dea7a

View the embedded image gallery online at:
https://www.arctodus.ru/en/item/549-fire-truck-az-1-6-40-gaz-c41a23.html#sigProIdd1d44c79df

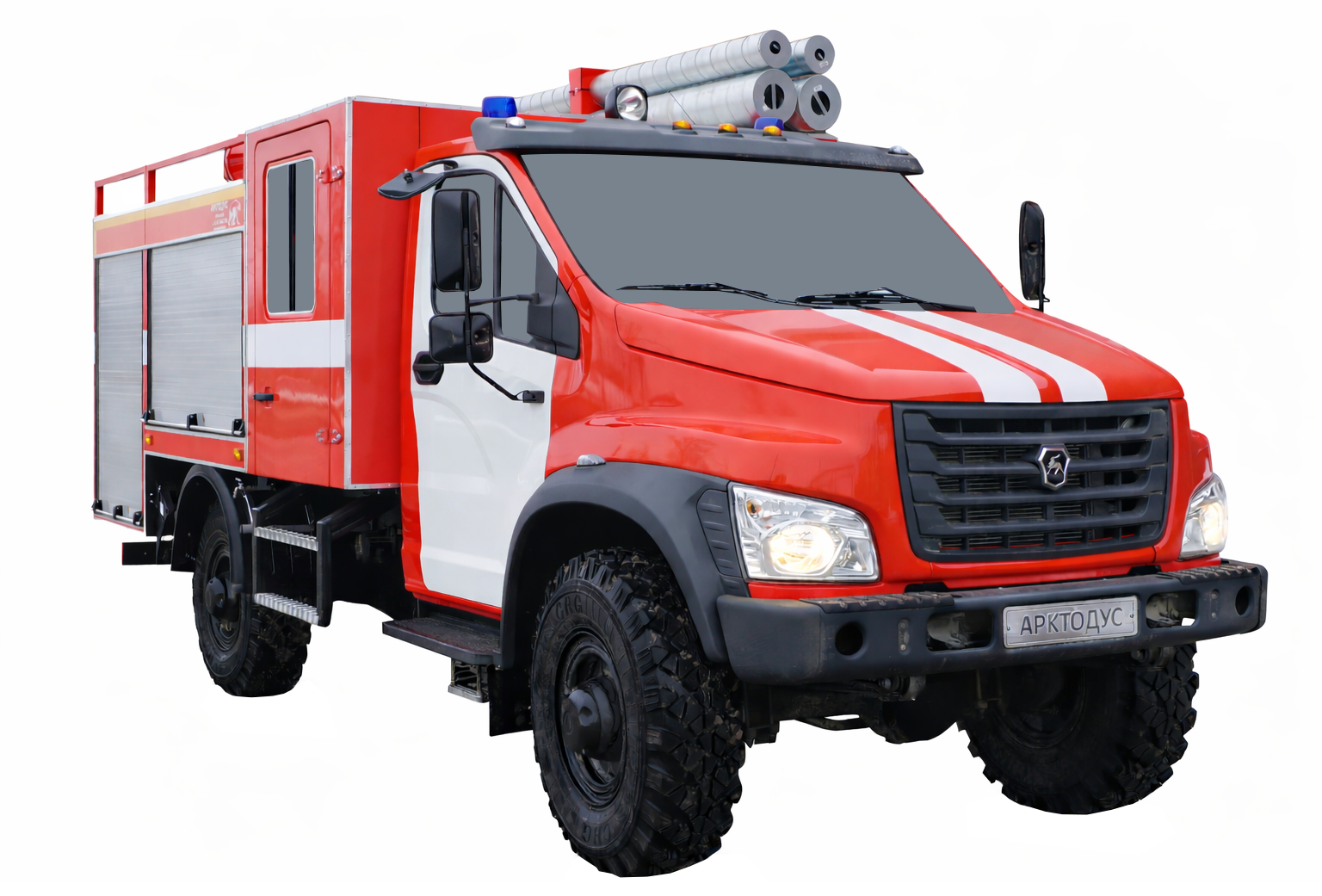

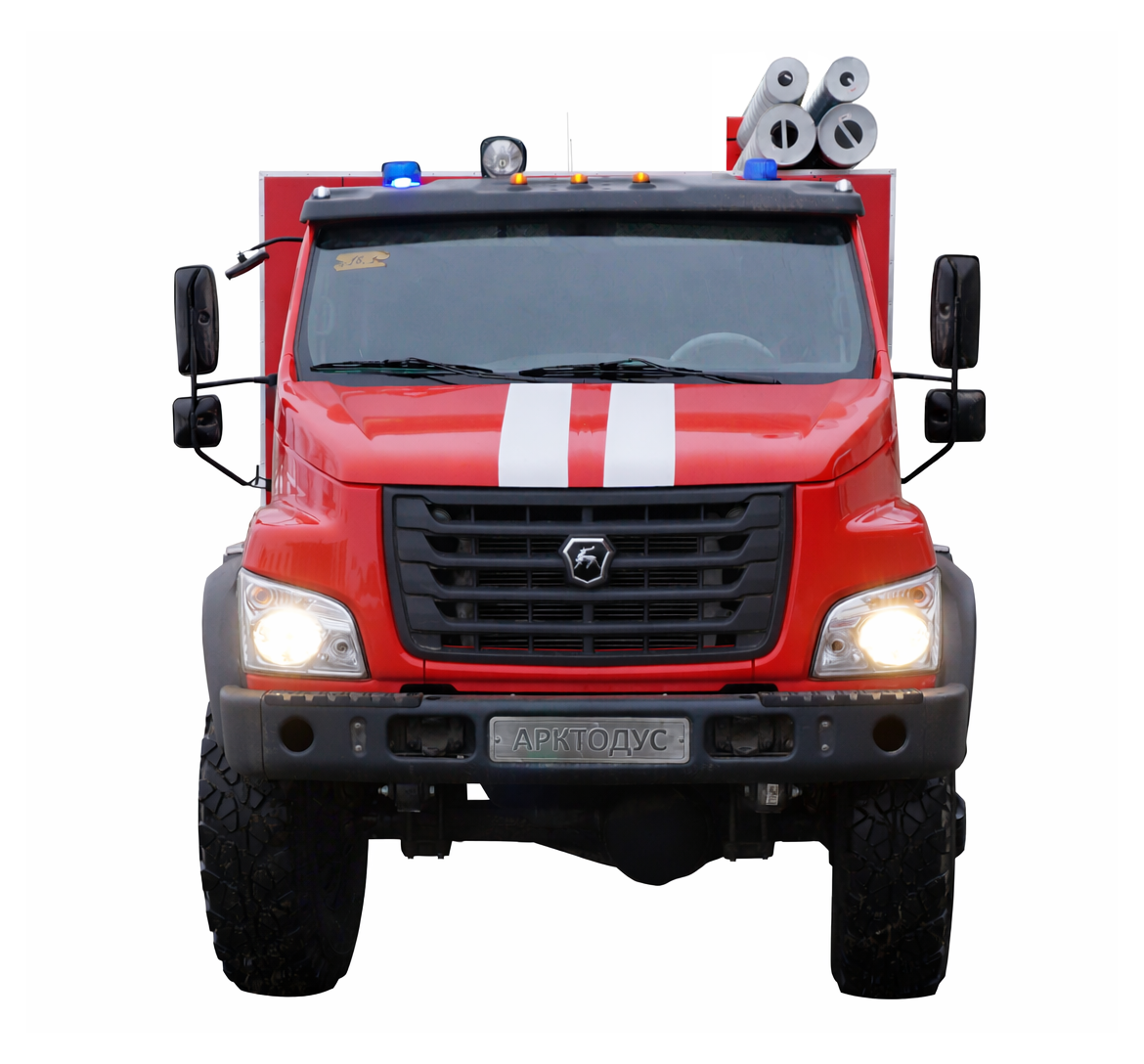

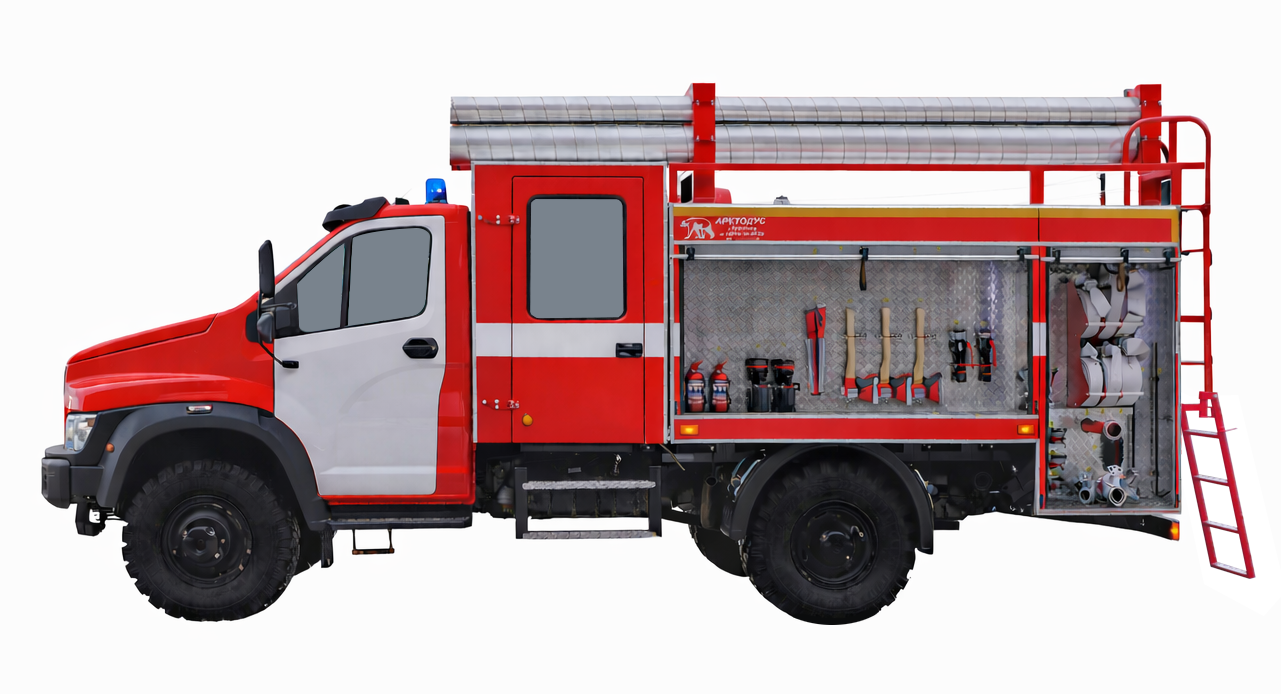

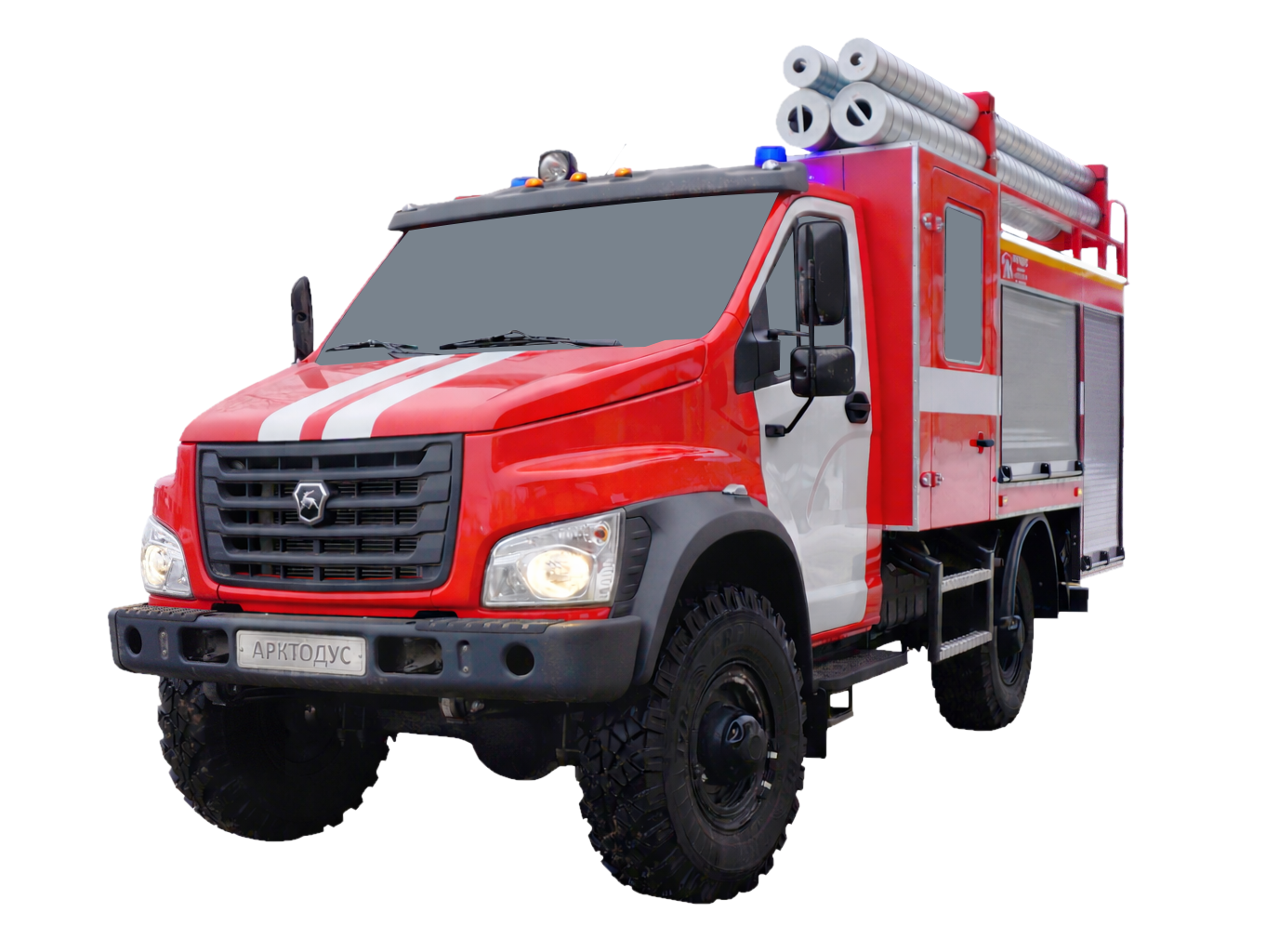

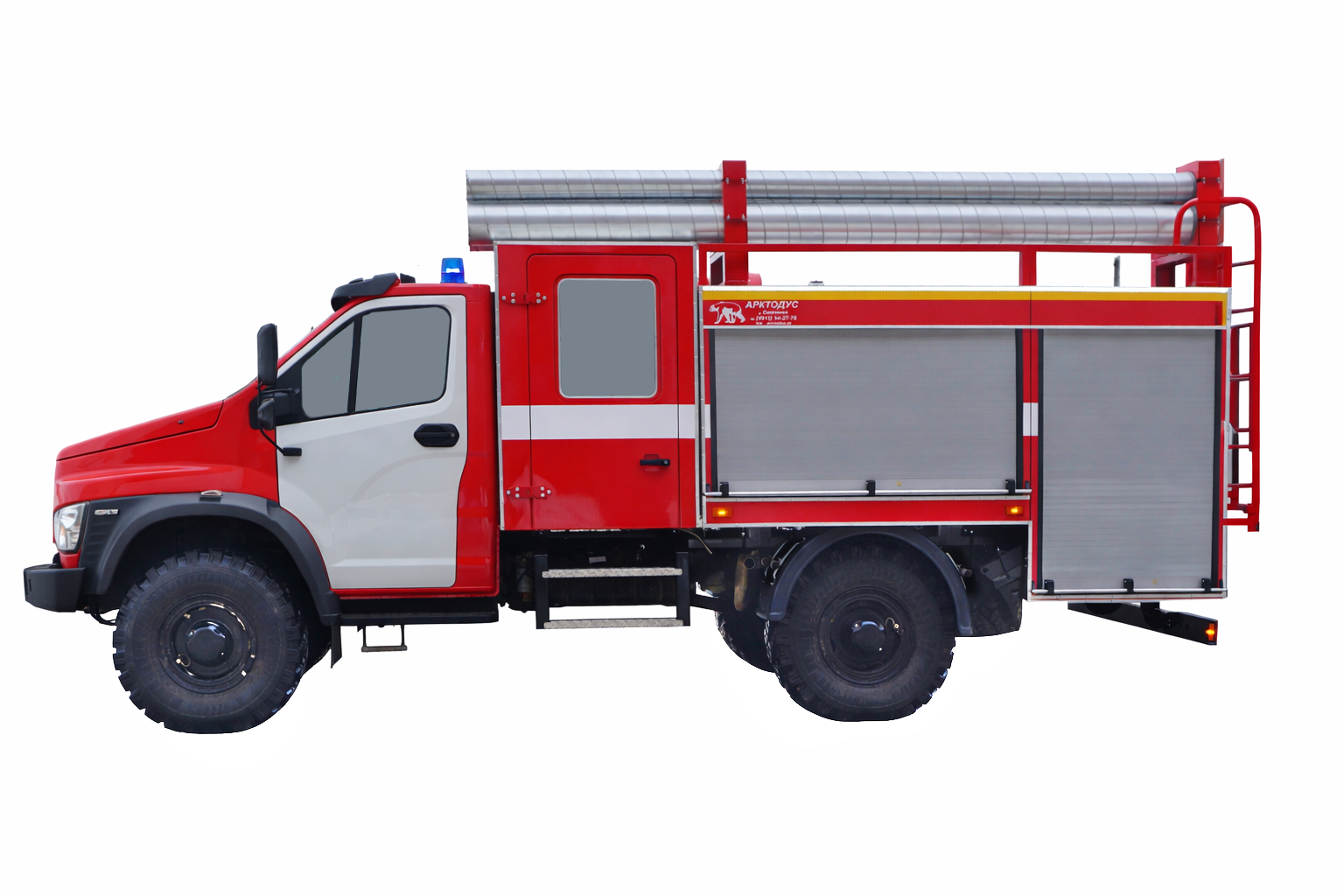

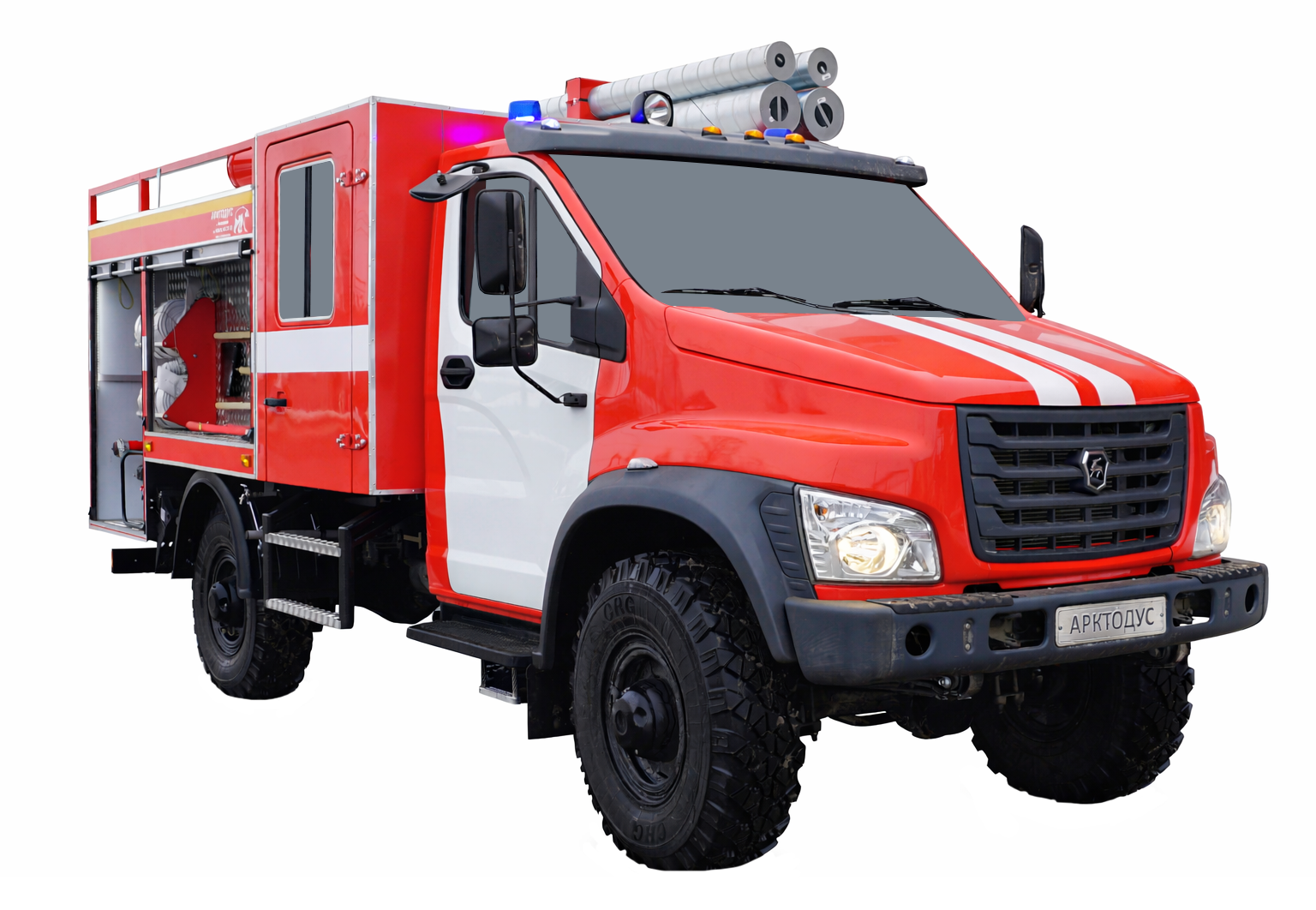

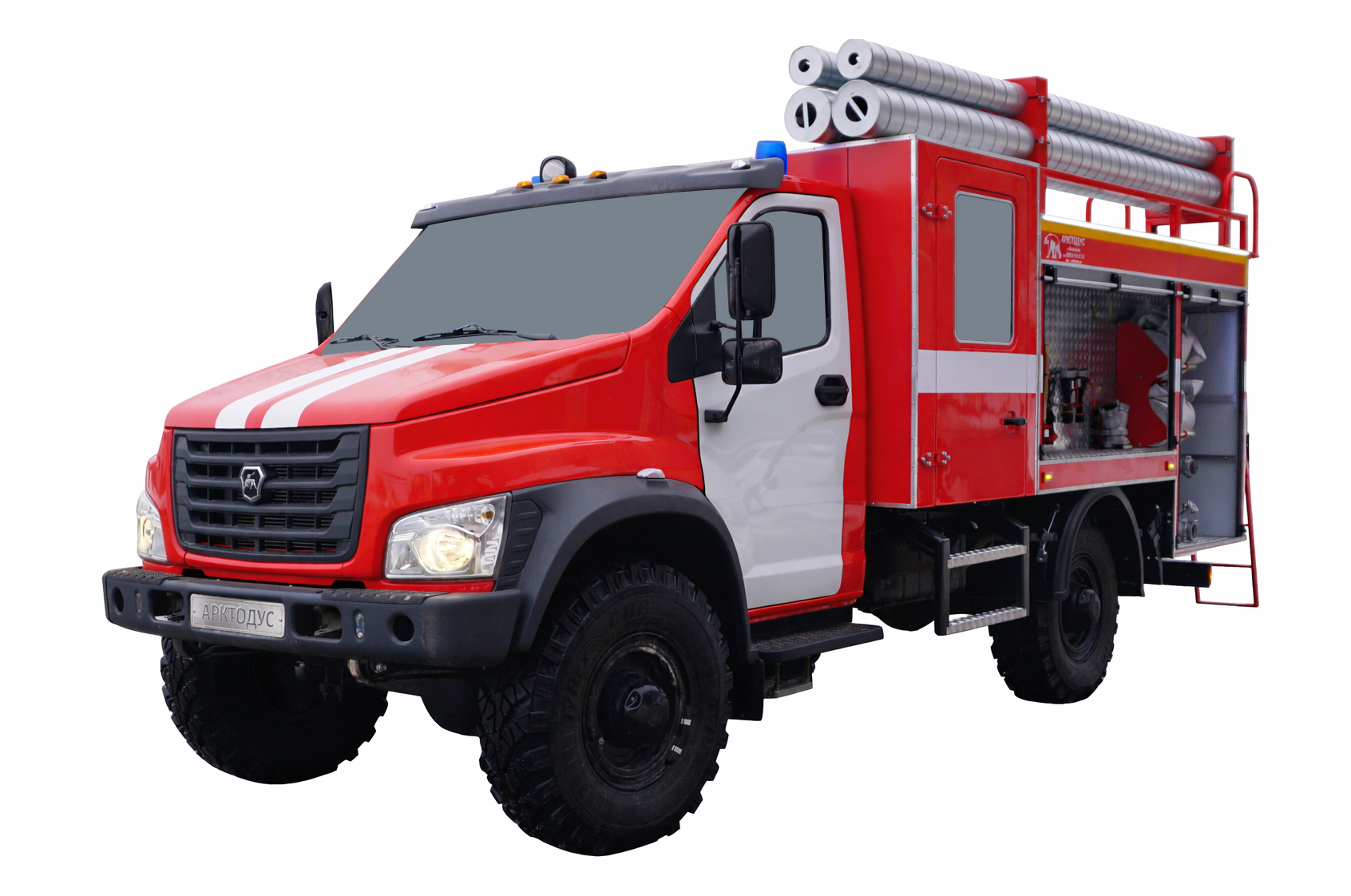

Fire truck AZ 1,6-40 (GAZ C41A23)

Fire truck AZ 1,6-40 (GAZ C41A23) intended for:

- delivery to the fire site of fire personnel, fire extinguishing substances, fire-technical equipment (FTE) and rescue equipment (RE), - extinguishing fires and emergency rescue operations, using a fire truck, fire personnel, fire extinguishing, substances, FTE and RE.

Capacity volume for water, l from 0 to 1600
Capacity volume for frother, l 96 (other as per customer request)

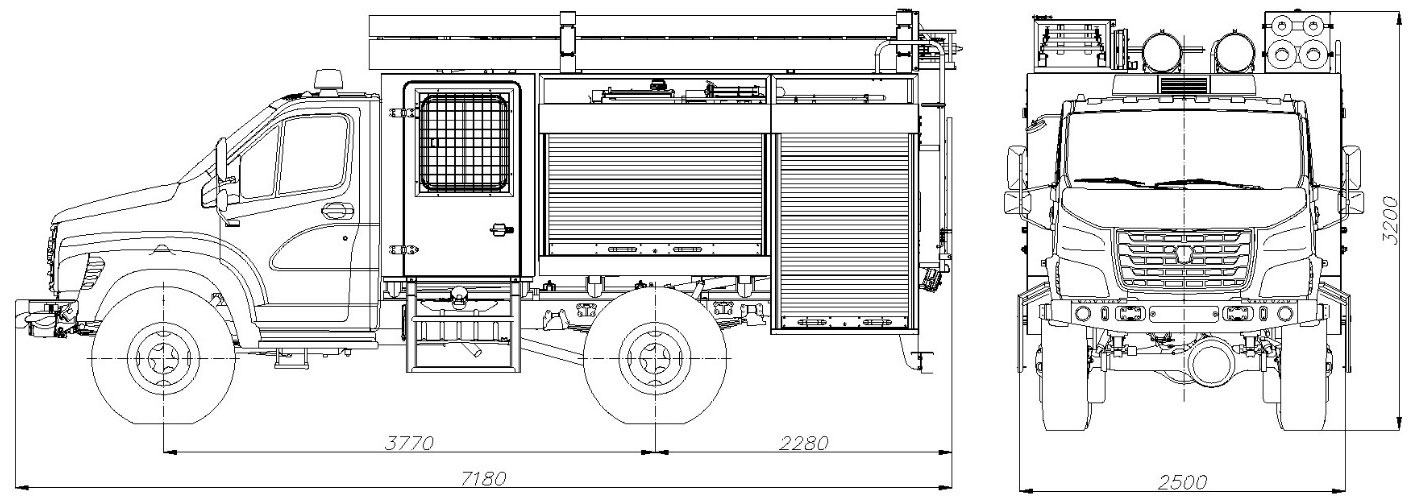

Overall dimensions (length / height / width), mm 718 0х3200х2500
Full mass, kg 7400
Colorography schemes GOST R 50574-2002 (other as per customer request)
Cab fire truck, the number of places for firefighting crew (including the driver's seat) four-door cab, six places;

cab front - all-metal standard chassis cabin, two-door, two places

cab rear - frame-panel type, four-seater;

both parts of the cabin form a common saloon

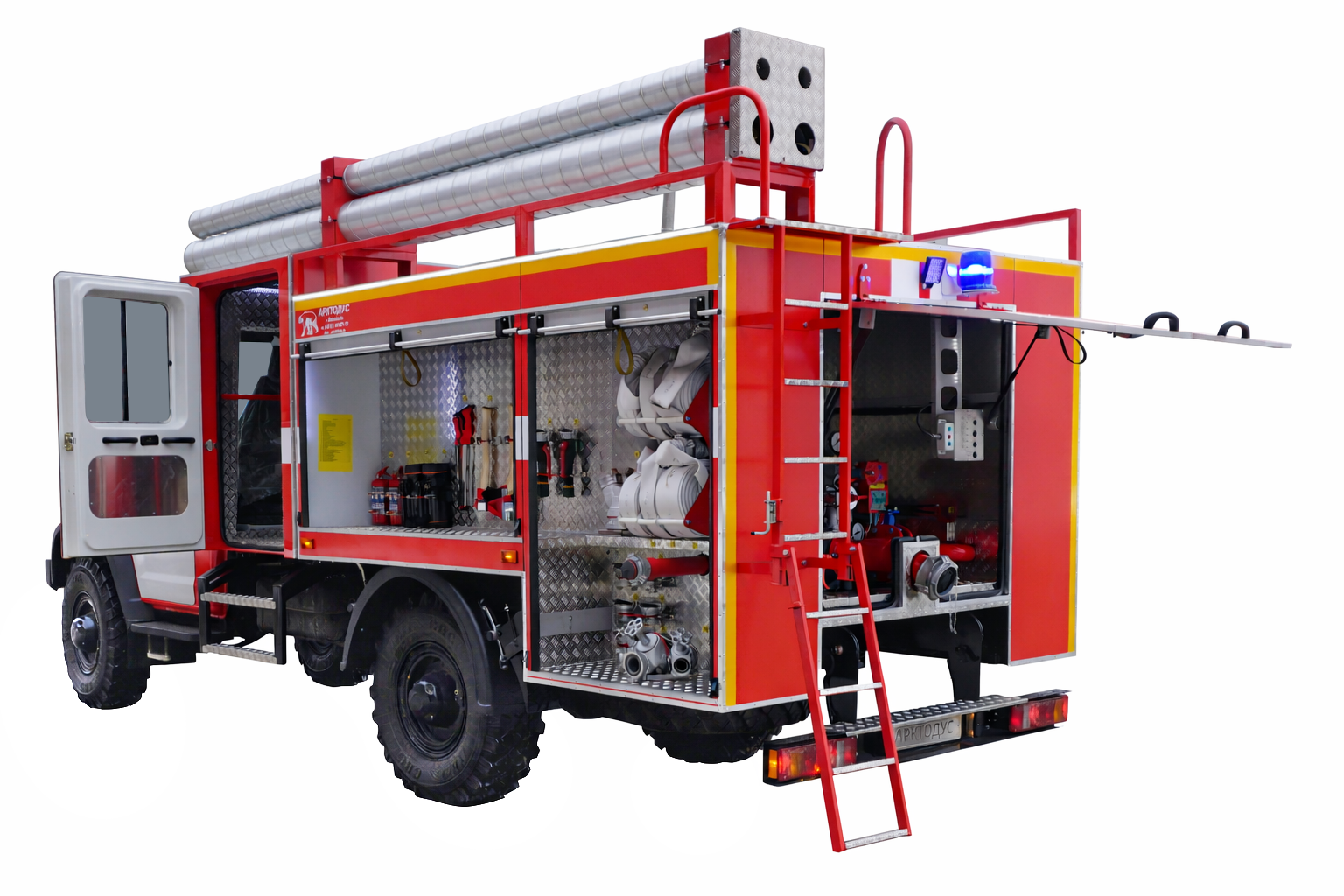

Execution option of loading space of the fire truck water tank, foam tank, fire pump, water and foam communications, body superstructure with compartments for fire-technical equipment and rescue equipment

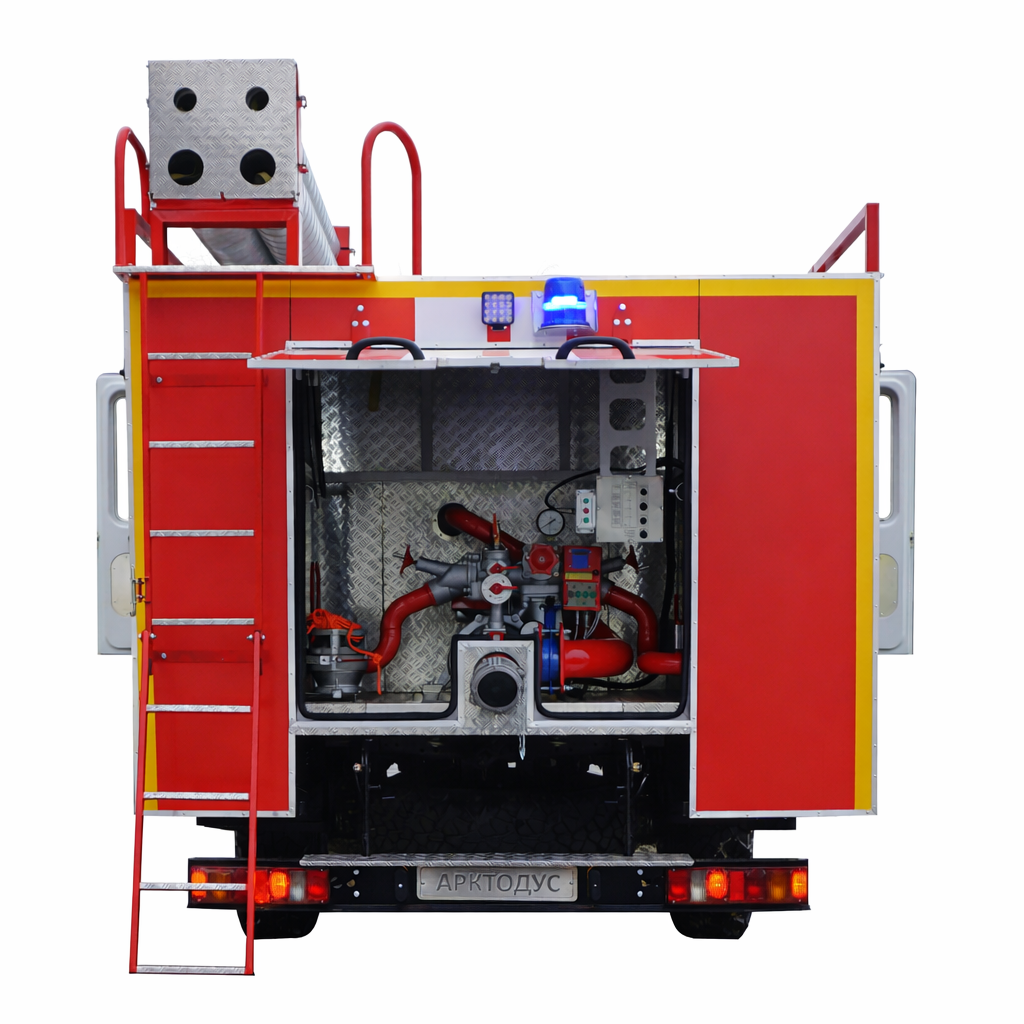

Fire pump normal pressure centrifugal fire pump NZPN-40/100, (according to GOST R 52283-2004 "Centrifugal fire pumps. General technical requirements. Test methods"),

rear location (other as per customer request). (other as per customer request)
Fire pump performance from 0 to 40 liters per second (or another with another fire pump)
Completeness FTE according to the standards of the Order of the Ministry of Emergency Situations of Russia №425 of July 25, 2006 (other as per customer request). (other as per customer request)

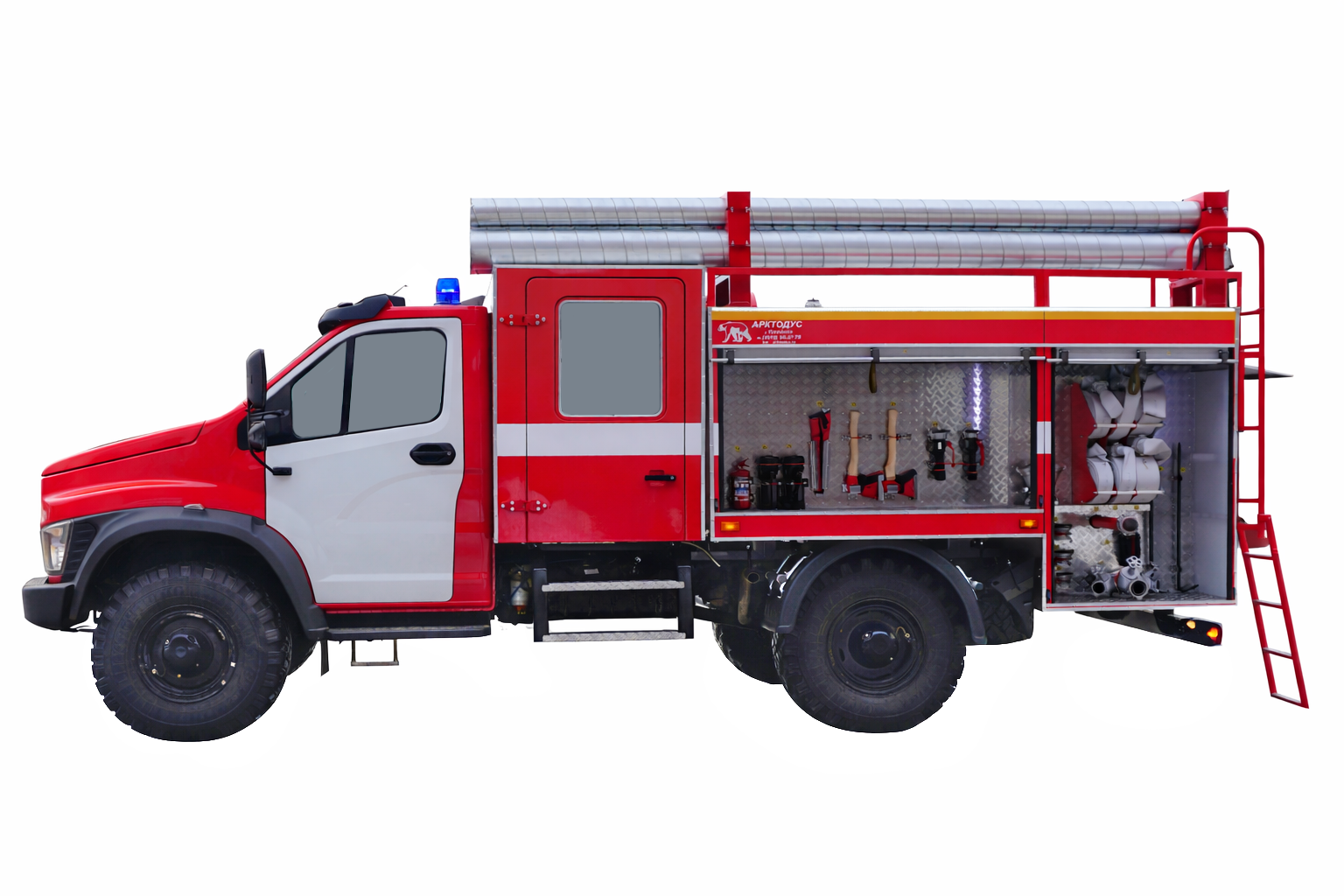

Placement FTE in the compartments, taking into account the tactics of its operational use, to ensure the reliability of equipment fixation, accessibility, convenience and safety during removal and installation
Wheel formula / driving wheels 4 х 4 / all
The layout of the base chassis of a fire truck engine layout front, longitudinal,

cabin behind engine, loading workspace behind cabin
Wheelbase, mm 3770
Wheel track (front / rear), mm 1830 / 1785
Engine (type, ecological class) YaMZ-53443, four-stroke, diesel, Euro-5
Engine power, hp 149
Maximum speed, km/h 90
Gearbox (type) mechanical
Tires (type, size) 12.00R18
